The Mixing Torque Rheometer (MTR) is a core piece of equipment for testing the rheological properties of polymer materials. Simulating shear, mixing, and flow behaviors under actual processing conditions provides critical data support for material development, process optimization, and quality control. Below, we discuss its key features, applications, technical advantages, and real-world case studies.
1. Key Features and Working Principle
Mixing and Shear Capability

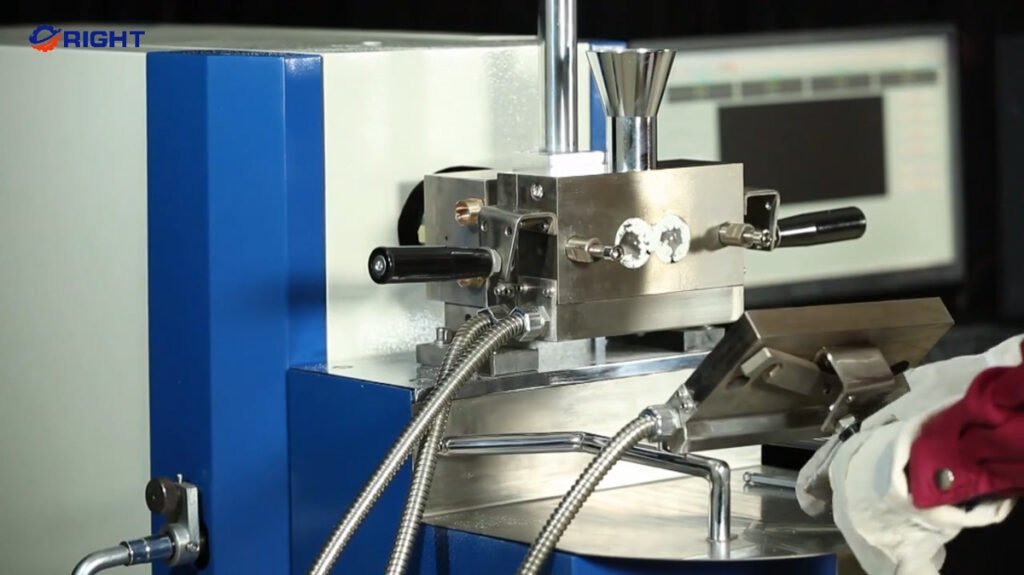

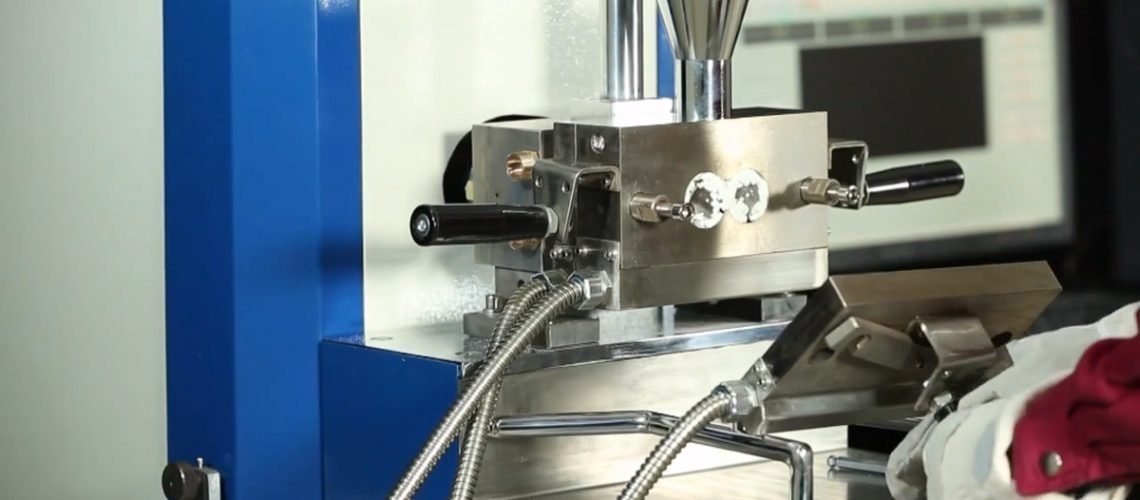

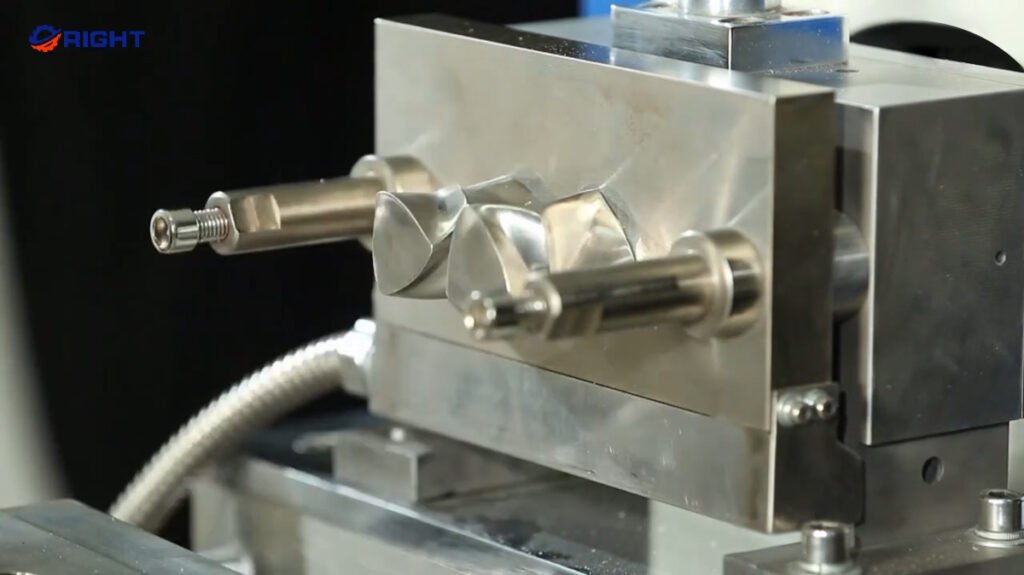

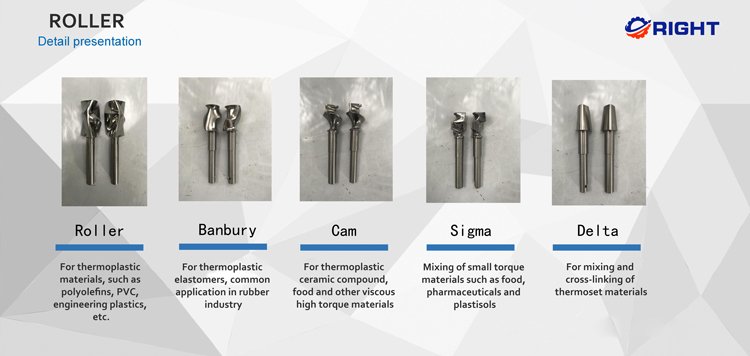

The Mixing Torque Rheometer applies shear and compressive forces to polymer materials through a rotating mixing unit (such as a rotor or screw), ensuring uniform dispersion and plasticization of the material. For example, rotors like Roller, Banbury, or Sigma are suitable for various shear requirements, effectively simulating the working conditions of internal mixers.
The core measurement system records parameters such as torque, temperature, and pressure in real-time, generating rheological curves that reflect the material’s melting characteristics, thermal stability, and flow behavior.
Multi-functional Integration and Modular Design
The equipment supports flexible configuration of auxiliary attachments such as mixers, single/double-screw extruders, and film-blowing heads to meet different testing needs. For instance, by changing the head, you can perform granulation, sheet rolling, or cable coating tests, directly simulating actual production processes. Some models feature a modular structure for easy assembly and cleaning, improving experimental efficiency.
2. Core Applications
Formulation Design and Optimization
In polymer blending and modification, the rheometer is used to assess the impact of additives (such as flame retardants or plasticizers) on material rheological properties. By comparing torque-time curves for different formulations, the optimal mix can be quickly identified, shortening the R&D cycle.
Raw Material Performance Testing
The rheometer is essential for testing the melting index, thermal stability, and processing window of raw materials. For example, when testing the melting characteristics of PVC, changes in torque can indicate whether the material has degraded, providing vital data for production quality control.
Processing Simulation and Optimization
In extrusion processing tests, the device can monitor melt pressure, temperature, and torque simultaneously, helping determine the optimal screw speed, temperature range, and other parameters. This leads to improved production efficiency and reduced energy consumption.
Development of New Materials
The rheometer is ideal for cutting-edge fields such as biodegradable plastics and nanocomposites. For example, it can be used to study the dispersion of carbon nanotubes in a polymer matrix and assess their reinforcement effects on material properties.
3. Technical Advantages and Innovations
High-Precision Measurement and Sensitivity
The device uses non-contact dynamic torque sensors and a precision temperature control system (with accuracy up to ±0.5°C), enabling it to capture subtle differences in formulations, such as pigment dispersion or the early stages of crosslinking reactions.
Continuous and Real-Time Monitoring
Compared to traditional intermittent testing, the Mixing Torque Rheometer conducts experiments under continuous conditions that closely resemble actual production processes, providing data that is more representative of real-world processing scenarios.
Eco-Friendly and Intelligent Trends
Some models integrate PLC control systems and specialized measurement and control software, enabling automation and real-time data analysis. For example, by using pressure-screw speed closed-loop control, the shear rate and melt flow behavior can be precisely regulated.
4. Typical Application Cases
Pigment Dispersion Testing
During mixing experiments, torque changes are monitored to assess the uniformity of pigment dispersion in the polymer. A smooth torque curve indicates good dispersion, while fluctuations signal agglomeration or unmelted particles.
Melt Pressure Monitoring and Filtration Performance Evaluation
When equipped with a filter head, the device can simulate the process of polymer melt passing through a filter. The rate of increase in melt pressure reflects the content of impurities or undispersed fillers in the material, offering guidance for cleaner production processes.
Solvent-Free Drug Co-Crystal Synthesis
In the field of mechanochemistry, the high shear forces of the rheometer can initiate solvent-free reactions. For example, using a twin-screw extruder module, solvent-free continuous synthesis of drug co-crystals can be achieved, which reduces solvent usage and improves yield.
5. Future Development Directions
Multi-functional Integration
Incorporating online detection technologies (such as infrared spectroscopy or Raman probes) will enable real-time monitoring of reaction processes.
Intelligent Expansion
AI algorithms can be used to predict material rheological behaviors, helping to optimize process parameters automatically.
Environmental Adaptation
Future models will focus on low-energy consumption and be adapted for testing biodegradable materials and water-based coatings, aligning with the growing demand for eco-friendly products.
