Overcoming Challenges in Advanced Materials R&D: Introducing the RT-739 Micro Precision Blending Extrusion System
In the realm of advanced materials research and development (R&D), we understand the challenges you face:
- High raw material costs: Rare materials cost thousands per gram, while traditional equipment consumes up to 200ml per test.
- Complex formulations requiring repeated validation: The trial-and-error process results in exponentially rising costs.
- Cumbersome, repetitive processes: Large volumes of data analysis and long testing cycles slow down progress.

To address these challenges, Dongguan Right Instrument Co., Ltd. has developed the RT-739 Micro Precision Blending Extrusion System, a groundbreaking technology that redefines the economic model of R&D:
- 15ml small-scale processing platform: Reduces material consumption by 95%.
- Precision micro-feeding technology: Ensures accurate material feeding in minimal quantities.
- Patented twin-screw co-rotating shear system: Achieves excellent dispersion.
- Modular temperature control unit: Supports processing temperatures from RT to 400°C.
The micro twin-screw blending extruder provides a significant advantage in scenarios where material costs are high and quantities are limited. It is especially useful for laboratory and small-scale production, enabling efficient mixing, precise process verification, and rapid iteration using gram-level raw materials. This dramatically reduces R&D costs.
Key Features and Typical Applications
1. Core Functions
- Efficient Utilization of Small Quantities of Raw Materials
The micro system requires only small amounts of material to conduct blending experiments (e.g., gram-scale quantities). It is perfect for testing the performance of expensive or rare materials like nanofillers, bio-based polymers, and specialty engineering plastics. The optimized screw design and shear parameters ensure even dispersion and minimize trial-and-error costs. - Precise Process Control
By adjusting parameters like screw speed, temperature distribution, and shear rate, the system can simulate industrial production conditions. This ensures that even small amounts of material undergo uniform melting and blending. For heat-sensitive materials like PLA and PVC, short residence times prevent degradation while preserving material properties. - Fast Formulation Screening and Optimization
The system supports rapid blending of multi-component composite materials, such as optimizing the ratio of polymer matrices, fibers, and fillers. With just a few experiments, you can identify the best formulation, significantly shortening development cycles.
2. Typical Application Cases
- Biodegradable Material Development
Case: PLA/Natural Fiber Composites
Using polylactic acid (PLA) as the matrix, natural fibers like wood flour or starch are blended using the micro twin-screw extruder. The experiment requires only a few tens of grams of material and shows that adding 15% wood flour improves tensile strength by 20%, while also controlling the degradation rate. - Nanocomposite Dispersion Verification
Case: Graphene-Reinforced Polypropylene (PP)
Graphene nanoplatelets are blended with polypropylene, and the micro extruder’s high shear force ensures uniform dispersion. The experiment showed that adding 0.5% graphene increases the composite’s conductivity by three orders of magnitude, and the small-scale results guide subsequent industrial-scale production. - High-Value Pharmaceutical Excipient Preparation
Case: Drug-Loaded Microspheres
In the pharmaceutical field, the micro twin-screw extruder is used to prepare drug-loaded polymer microspheres. By controlling the extrusion temperature and shear rate, uniform encapsulation of the drug with PLGA (Poly(lactic-co-glycolic acid)) is achieved. Only 5-10 grams of material is required to validate the sustained release effect, which lasts 72 hours. - Specialty Engineering Plastic Modification
Case: PEEK/Carbon Fiber Composites
For the blending of polyetheretherketone (PEEK) with short carbon fibers, the micro system is used at high temperatures (380°C) to verify fiber orientation and interface bonding strength. Results show that adding 20% carbon fiber improves the material’s flexural strength by 40%, providing valuable data for high-performance material development in aerospace applications. - Functional Polymer Reactive Extrusion
Case: Maleic Anhydride Grafted Polypropylene (PP-g-MAH)
The micro extruder is used for in-situ grafting reactions to investigate the impact of initiator concentration and reaction temperature on grafting efficiency. With minimal material consumption, the optimized reaction conditions result in a grafting efficiency of 1.8%, significantly improving the interface adhesion of the composite material.
3. Technical Advantages and Industry Value
- Cost Efficiency: Material consumption is reduced by over 80%, making it ideal for validating high-cost materials such as rare earth additives and biomedical polymers.

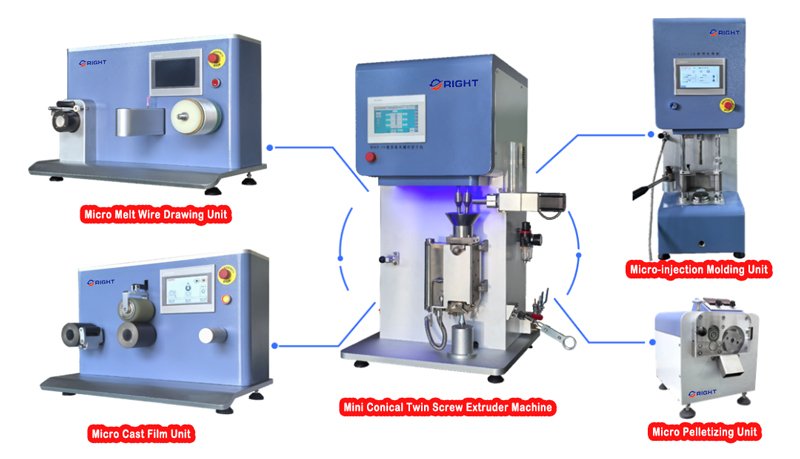

- Flexibility: The modular design supports screw combinations that accommodate different material characteristics (e.g., high-viscosity or heat-sensitive materials).
- Data Support: Small-scale trial parameters (e.g., melt pressure, torque) can be directly applied to industrial-scale equipment, reducing mass production risks.
Conclusion
The RT-739 micro twin-screw blending extruder has become an essential tool in the R&D of high-value materials through precise control and small-scale experiments. Its successful applications in fields such as biodegradable materials, nanocomposites, pharmaceuticals, and specialty engineering plastics not only accelerate new material development but also significantly reduce R&D costs. This technology serves as a crucial bridge between laboratory innovations and industrial-scale production.
